Planetary joint module
Planet 150 N·m
Product Inquiry
Product Introduction

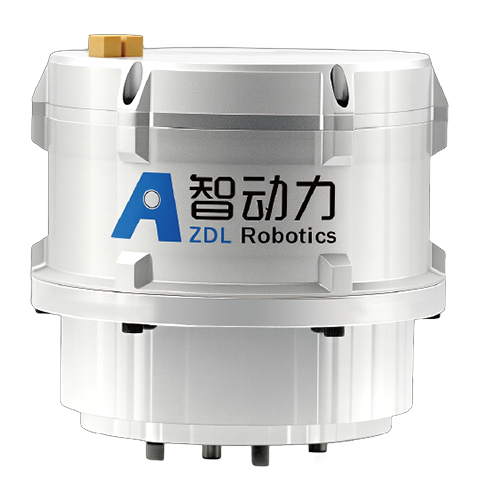

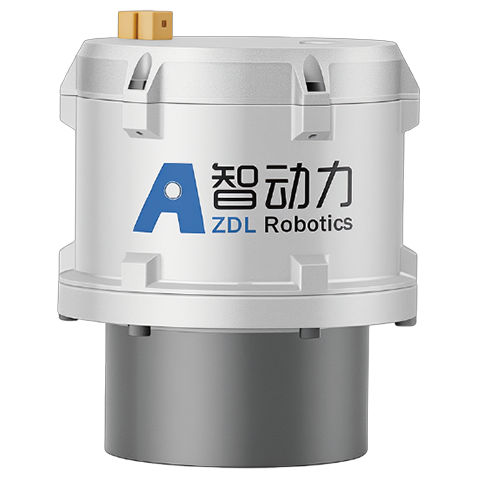

This planetary joint module is specifically designed for humanoid robot joint actuation, integrating a high-torque-density frameless motor and a precision planetary reducer, featuring high rigidity, zero backlash, and strong overload capacity. The module incorporates dual encoders and a torque sensor, supporting high-precision force and position control and compliant interaction. Its compact and lightweight structure enables smooth, highly dynamic rotational motion, making it widely applicable to core load-bearing joints in robots such as the hip, knee, and shoulder, meeting the complex movement and safe collaborative requirements of humanoid robots.
Technical parameters
Parameter Classification Parameters Specifications
Mechanical parameters Rated torque 55N·m
Maximum acceleration/deceleration torque 150N·m
Rated speed 70rpm
Peak speed 100rpm (no load)
Gearbox parameters type Planetary gear reducer
Reduction ratio 50
Transmission accuracy 5arcmin
Average lifespan 10000h
External dimensions diameter 90mm
length 108mm
weight 1.5kg
Motor parameters Rated power 420W
Rated voltage 48V
Rated current 11A
Peak current 35A
Encoder type Multi-turn absolute encoder
Communication methods EtherCAT
Other information Protection level IP40
Work environment Operating temperature: 0~40℃ (-40~60℃ optional)
Storage temperature -40~80℃
Ambient humidity 90% relative humidity (non-condensing)
